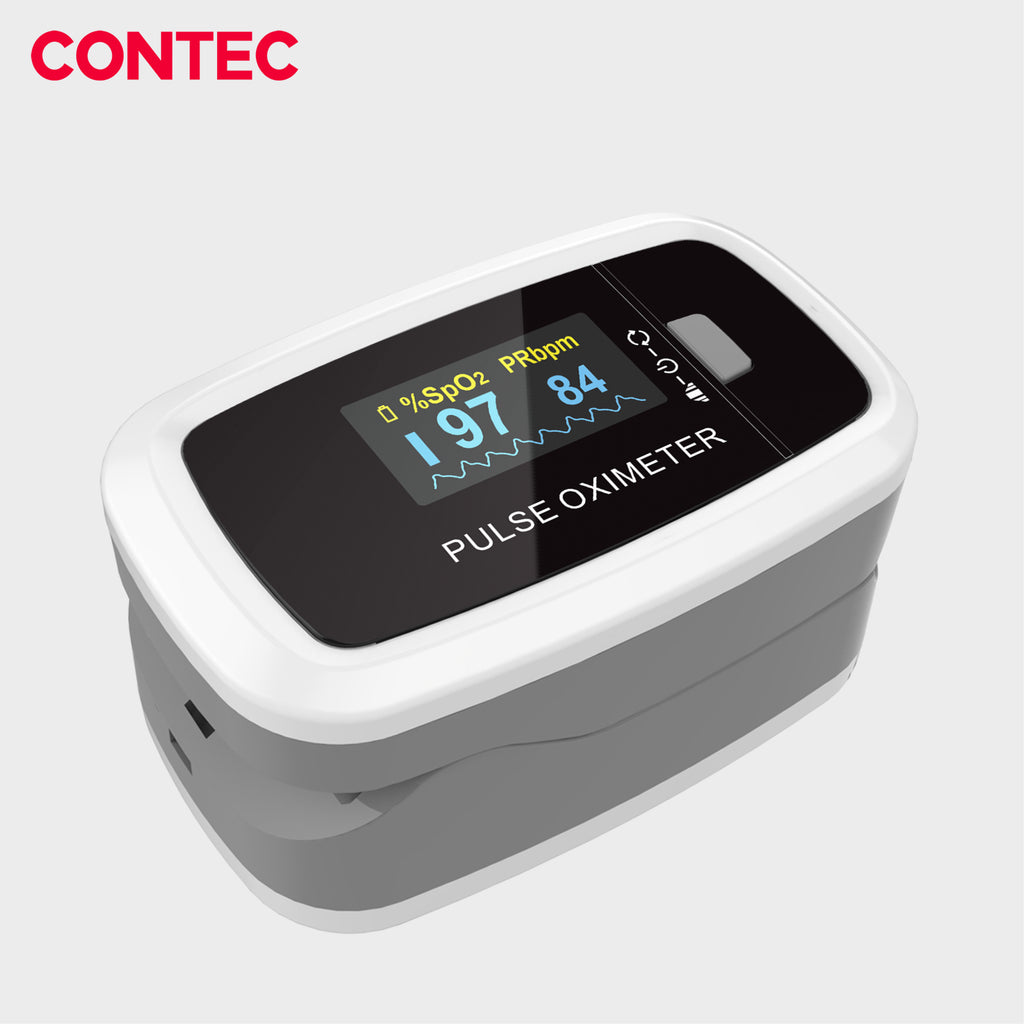

CMS50D1 Fingertip Pulse Oximeter – SpO₂ & Pulse Rate Monitor with Pulse Waveform Display.

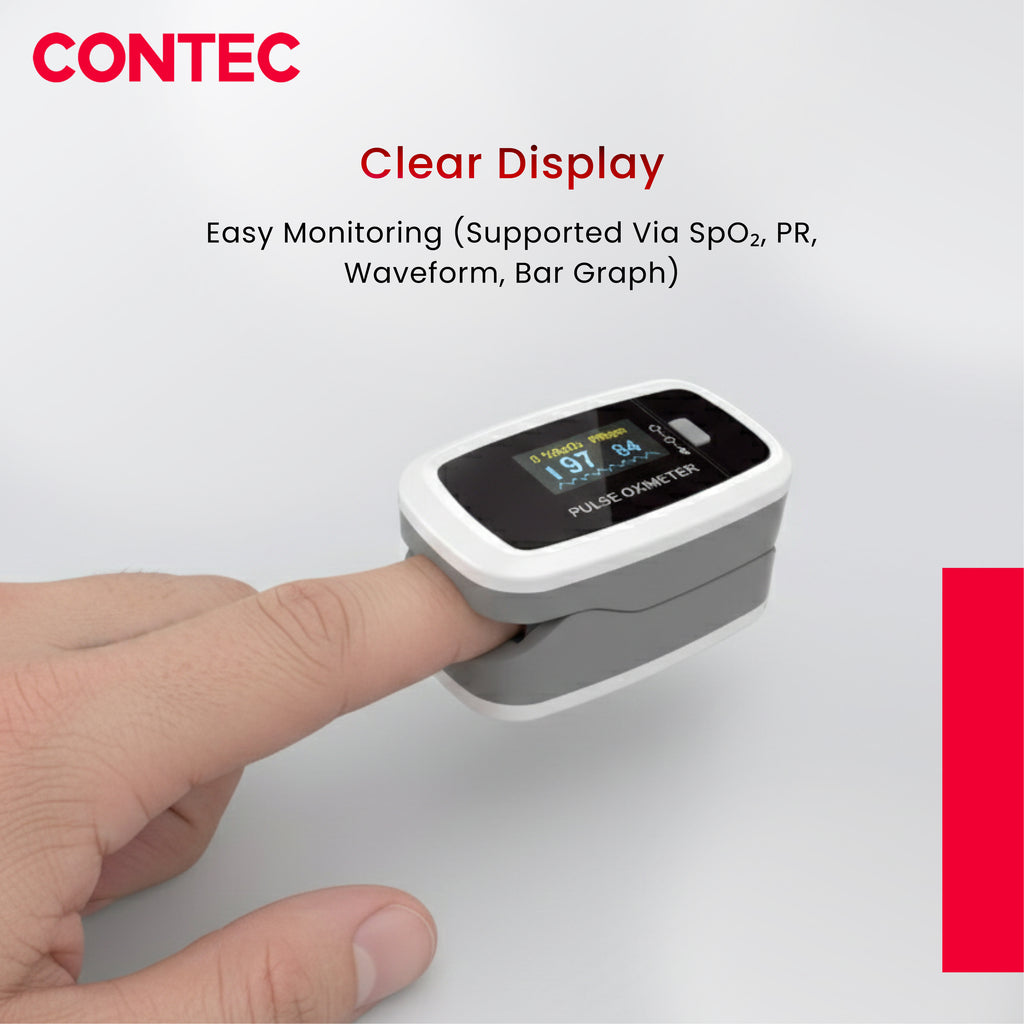

The CMS50D1 Pulse Oximeter is a compact and easy-to-use device for measuring blood oxygen saturation (SpO₂) and pulse rate through the fingertip. It features a clear display with SpO₂ values, pulse rate, bar graph, and pulse waveform, along with adjustable screen brightness and an automatic display rotation. The device also includes a low-voltage warning and auto-standby function for convenience and safety.

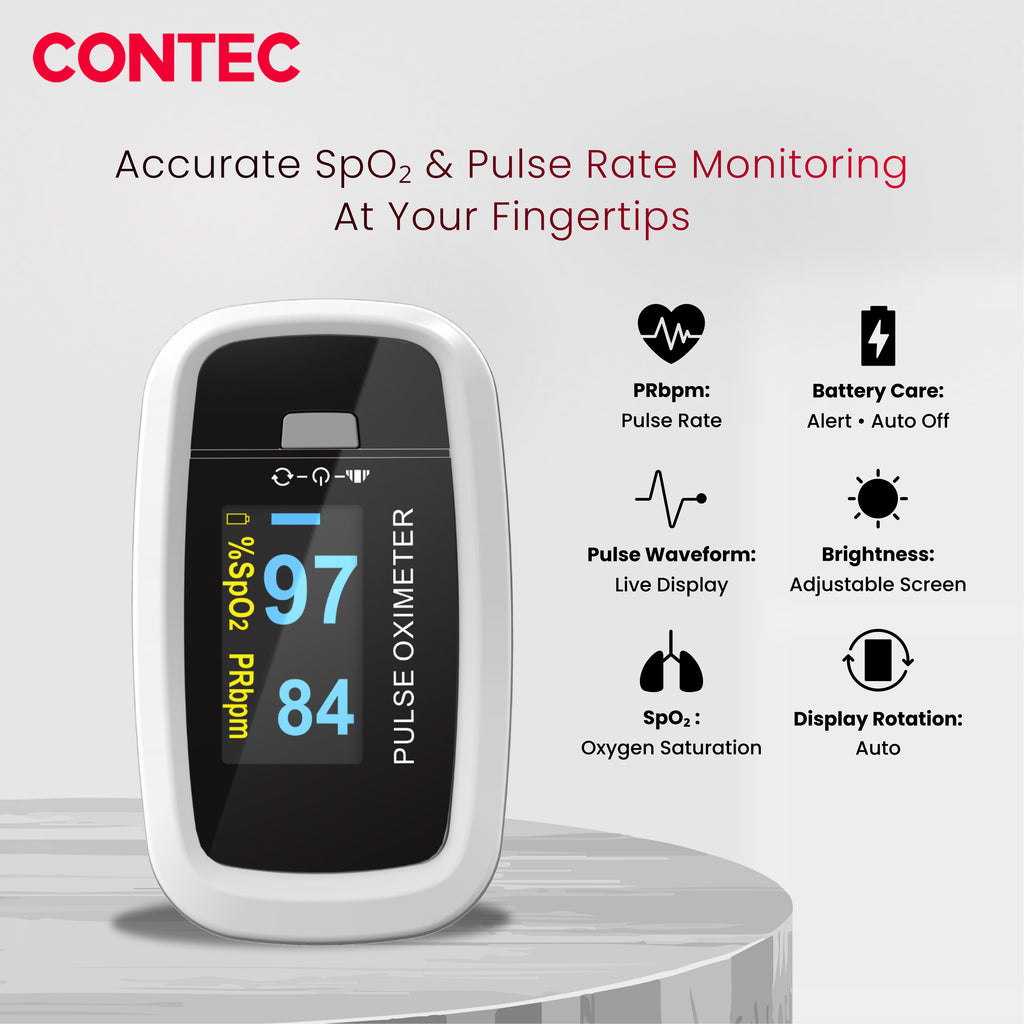

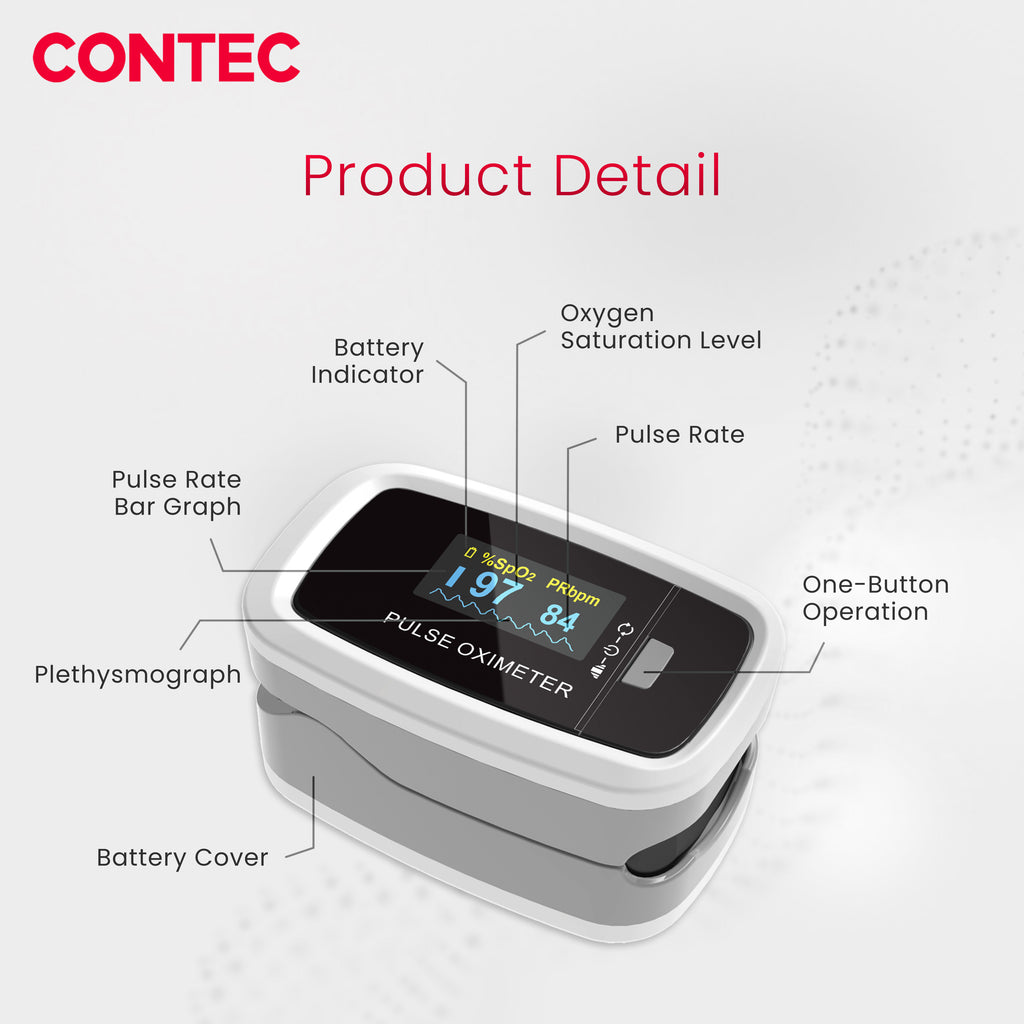

Features

1. Display of SpO2 value.
2. Display of pulse rate value and bar graph.
3. Display of pulse waveform.
4. Automatic direction-changing function.
5. Screen brightness can be changed.

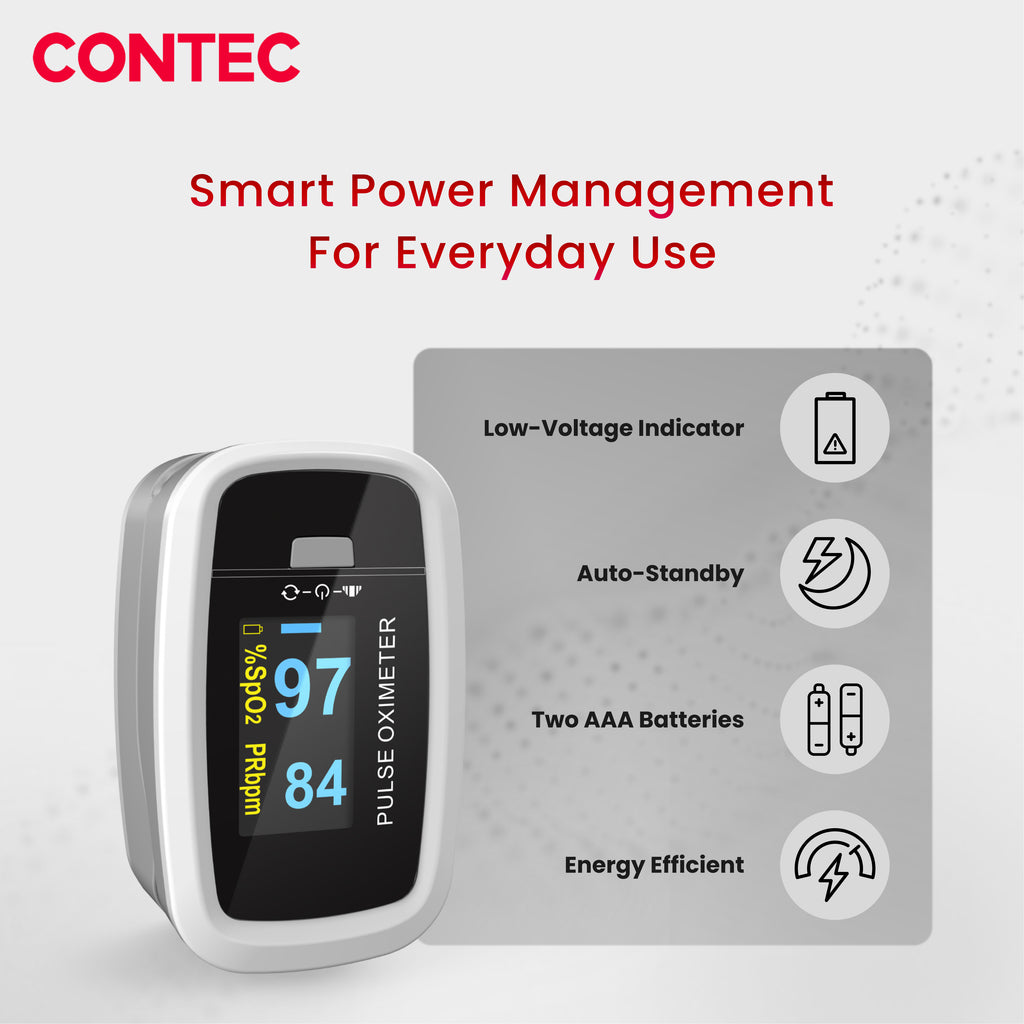

6. Low-voltage indication: the low power indication symbol appears when the voltage is too low to work.
7. Auto standby.

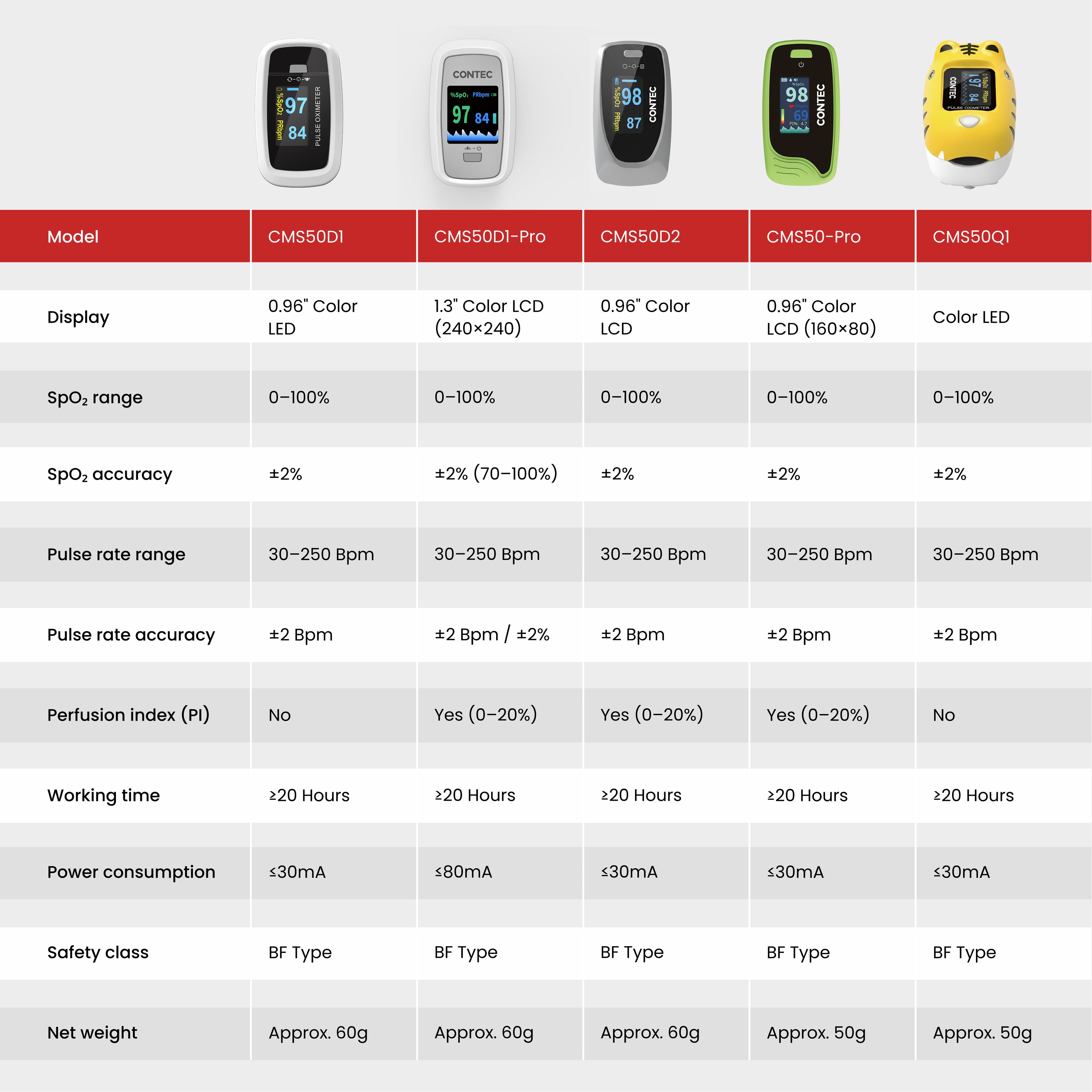

Technical Specification

• Display- 0.96" color display
• Screen resolution: 160 * 80
• SpO2 measurement range：0%～100%, (resolution is 1%).
• Accuracy：70%～100%：±2%
• 0 % ~ 69 %；unspecified
• PR measurement range：30bpm～250bpm(resolution is 1bpm)
• Accuracy：±2 bpm during the pulse rate range of 30 bpm ~ 99 bpm and ±2% during the pulse rate range of 100 bpm ~ 250 bpm.
• Accuracy under low perfusion: low perfusion 0.4 %, SpO2 accuracy: ± 4 %; PR accuracy: ±2 bpm during the pulse rate range of 30 bpm ~ 99 bpm and ±2% during the pulse rate range of 100 bpm ~ 250 bpm.
• Light interference: Under normal and ambient light conditions, the SpO2 deviation ≤ 1%
• Power consumption: ≤ 30mA
• Working voltage: DC 2.6 V - 3.6 V
• Battery: two AAA alkaline batteries
• Working time for battery: continuously work for 20 hours at least
• Safety class: type BF applied part
• Physical Identity
• Dimension:61(L) × 36(W) × 32(H) mm
• Weight: About 60g (with the batteries)
