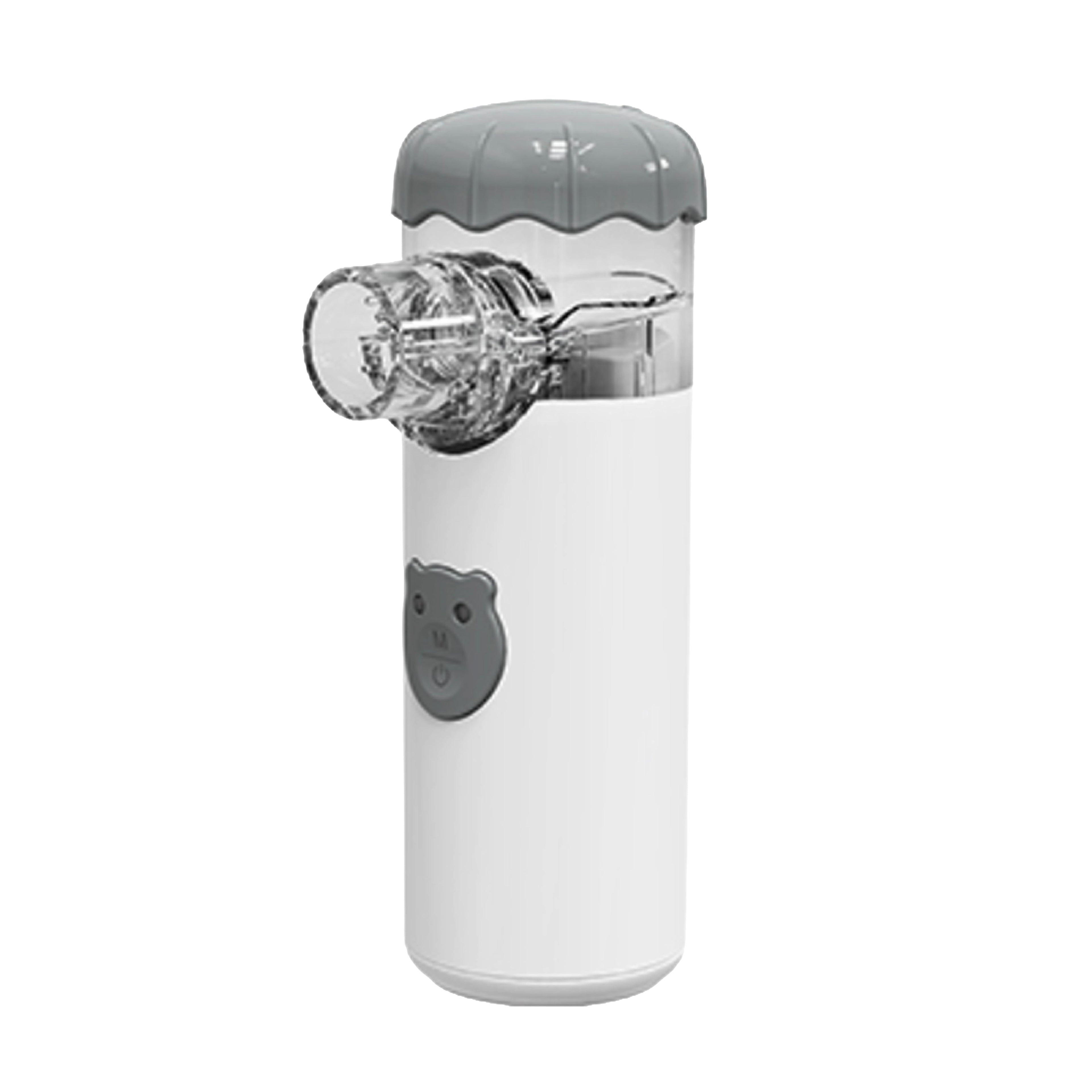

NE-M02 Mesh Nebulizer – Portable Ultrasonic Inhalation therapy device.

The device forms nebulizing effect by the following actions, the high-frequency vibration of piezoelectric ceramic piece leads to the deformation of micro plate, so that the liquid in contact with the micro plate is atomized. It is powered by a 5 V power adapter or a 3.7 V lithium battery, with the advantages of compact and portable design, easy to use, adjustable (two grades) and high in nebulization rate, which is applicable for use in hospital, clinic and family.

FEATURES: -

• One-Button Easy Operation
  Simple single-touch control makes it easy for children, adults, and elderly users to operate without complications.

• Advanced Liquid Nebulization Technology
  Efficiently converts liquid medicine into fine mist particles for better absorption and effective respiratory relief.

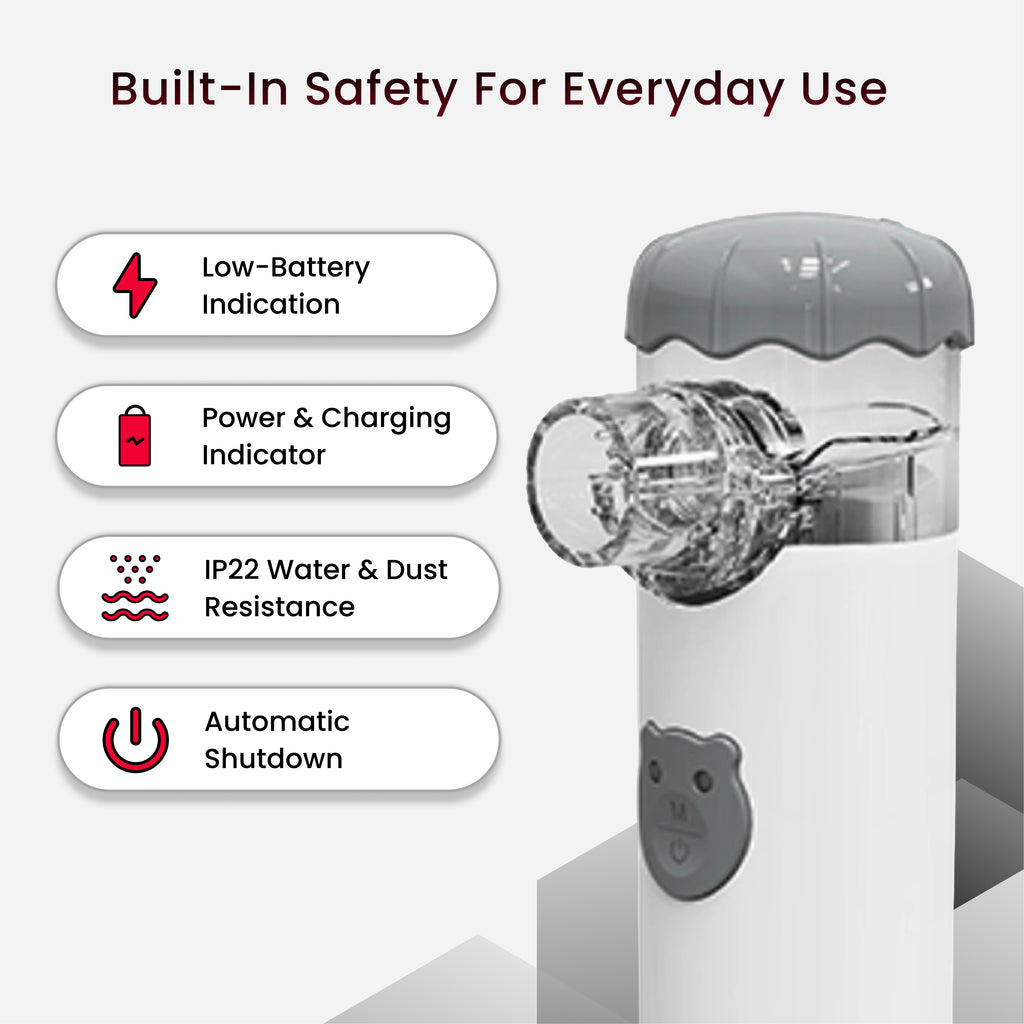

• Smart Power Indicator
  Built-in LED power indicator clearly shows the device status for safe and convenient usage.

• Low Battery Alert System
  Intelligent low-battery indication ensures timely charging and uninterrupted treatment sessions.

• Automatic Shut-Off Protection
  Device automatically powers off when liquid medicine runs out, preventing damage and ensuring user safety.

• Adjustable Nebulization Rate
  Customize mist output according to patient needs for comfortable and controlled therapy.

• Rechargeable & Portable Design
  Equipped with a charging function and built-in battery for convenient use at home or while traveling.

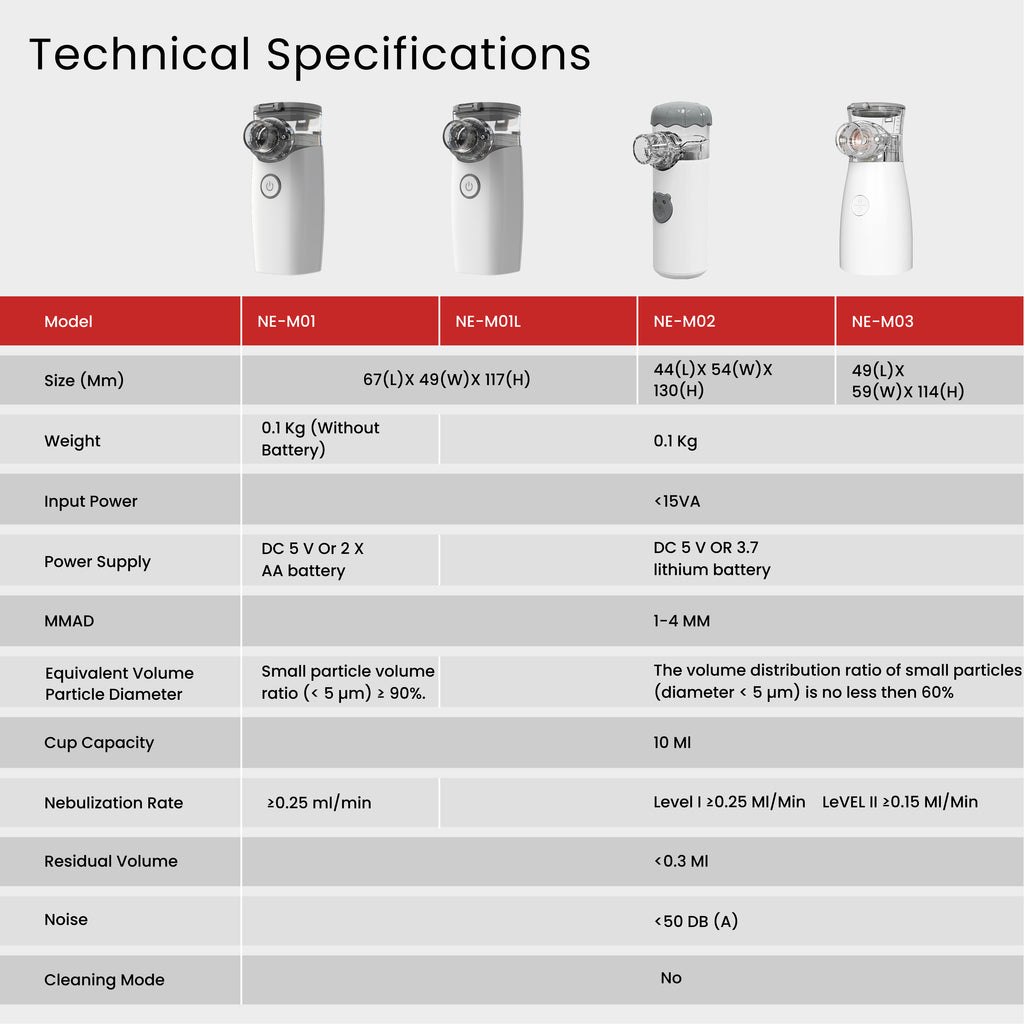

TECHNICAL SPECIFICATION: -

• Median particle diameter: 1-4 μm±25%
• Equivalent volume particle diameter distribution: the proportion of particle diameter below 5 μm is not less than 60 %
• Input power: < 15 VA
• Nebulization rate:
• Grade Ⅰ: ≥ 0.25 mL/min.
• Grade Ⅱ: ≥ 0.15 mL/min
• Cup capacity: 10 mL
• Liquid volume: 2 ~ 10 mL
• Residual volume: ≤ 0.3 mL
• Noise: ≤ 50 dB (A)
• Working frequency: 110 KHz ± 10 %
• Power supply: DC 5 V or 3.7 V rechargeable lithium battery
• Safety class: class Ⅱ equipment, type BF applied part
• The degree of waterproof and dustproof: IP22
• Mode of operation: continuous operation
• Operating environment
• Temperature: 5 ℃ ~ 40 ℃
• Relative humidity: 15 % ~ 90 %
• Atmospheric pressure: 700 hPa ~ 1060 hPa
